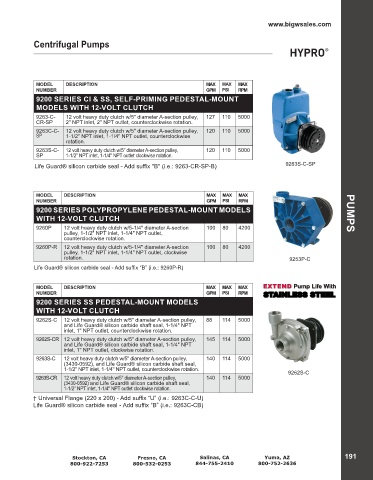

Page 193 - 2022 Online Catalog

www.bigwsales.com

Centrifugal Pumps

MODEL DESCRIPTION MAX MAX MAX
NUMBER GPM PSI RPM
9200 SERIES CI & SS, SELF-PRIMING PEDESTAL-MOUNT
MODELS WITH 12-VOLT CLUTCH
9263-C- 12 volt heavy duty clutch w/5" diameter A-section pulley, 127 110 5000
CR-SP 2" NPT inlet, 2" NPT outlet, counterclockwise rotation.
9263C-C- 12 volt heavy duty clutch w/5" diameter A-section pulley, 120 110 5000
SP 1-1/2" NPT inlet, 1-1/4" NPT outlet, counterclockwise
rotation.
9263S-C- 12 volt heavy duty clutch w/5" diameter A-section pulley, 120 110 5000
SP 1-1/2" NPT inlet, 1-1/4" NPT outlet clockwise rotation.
Life Guard® silicon carbide seal - Add suffix "B" (i.e.: 9263-CR-SP-B) 9263S-C-SP

MODEL DESCRIPTION MAX MAX MAX
NUMBER GPM PSI RPM
9200 SERIES POLYPROPYLENE PEDESTAL-MOUNT MODELS
WITH 12-VOLT CLUTCH PUMPS
9260P 12 volt heavy duty clutch w/5-1/4" diameter A-section 100 80 4200
pulley, 1-1/2" NPT inlet, 1-1/4" NPT outlet,
counterclockwise rotation.
9260P-R 12 volt heavy duty clutch w/5-1/4" diameter A-section 100 80 4200
pulley, 1-1/2" NPT inlet, 1-1/4" NPT outlet, clockwise
rotation. 9253P-C
Life Guard® silicon carbide seal - Add suffix “B” (i.e.: 9260P-R)

MODEL DESCRIPTION MAX MAX MAX EXTEND Pump Life With
STAINLESS STEELAINLESS STEEL
NUMBER GPM PSI RPM ST
9200 SERIES SS PEDESTAL-MOUNT MODELS
WITH 12-VOLT CLUTCH

9262S-C 12 volt heavy duty clutch w/5" diameter A-section pulley, 88 114 5000
and Life Guard® silicon carbide shaft seal, 1-1/4" NPT
inlet, 1" NPT outlet, counterclockwise rotation.
9262S-CR 12 volt heavy duty clutch w/5" diameter A-section pulley, 145 114 5000
and Life Guard® silicon carbide shaft seal, 1-1/4" NPT
inlet, 1" NPT outlet, clockwise rotation.
9263S-C 12 volt heavy duty clutch w/5" diameter A-section pulley, 140 114 5000
(3430-0592), and Life Guard® silicon carbide shaft seal,
1-1/2" NPT inlet, 1-1/4" NPT outlet, counterclockwise rotation. 9262S-C
9263S-CR 12 volt heavy duty clutch w/5" diameter A-section pulley, 140 114 5000
(3430-0592) and Life Guard® silicon carbide shaft seal,
1-1/2" NPT inlet, 1-1/4" NPT outlet clockwise rotation.
† Universal Flange (220 x 200) - Add suffix “U” (i.e.: 9263C-C-U)
Life Guard® silicon carbide seal - Add suffix “B” (i.e.: 9263C-CB)
