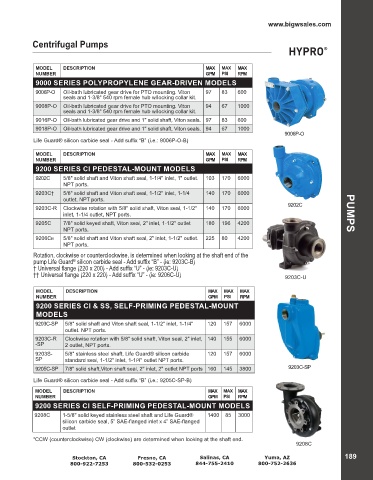

Page 191 - 2022 Online Catalog

www.bigwsales.com

Centrifugal Pumps

MODEL DESCRIPTION MAX MAX MAX
NUMBER GPM PSI RPM
9000 SERIES POLYPROPYLENE GEAR-DRIVEN MODELS

9006P-O Oil-bath lubricated gear drive for PTO mounting. Viton 97 83 600
seals and 1-3/8" 540 rpm female hub w/locking collar kit.
9008P-O Oil-bath lubricated gear drive for PTO mounting. Viton 94 67 1000
seals and 1-3/8" 540 rpm female hub w/locking collar kit.
9016P-O Oil-bath lubricated gear drive and 1" solid shaft, Viton seals. 97 83 600
9018P-O Oil-bath lubricated gear drive and 1" solid shaft, Viton seals. 94 67 1000
9006P-O
Life Guard® silicon carbide seal - Add suffix “B” (i.e.: 9006P-O-B)

MODEL DESCRIPTION MAX MAX MAX
NUMBER GPM PSI RPM
9200 SERIES CI PEDESTAL-MOUNT MODELS

9202C 5/8" solid shaft and Viton shaft seal, 1-1/4" inlet, 1" outlet. 103 170 6000
NPT ports.
9203C† 5/8" solid shaft and Viton shaft seal, 1-1/2" inlet, 1-1/4 140 170 6000
outlet, NPT ports.
9203C-R Clockwise rotation with 5/8" solid shaft, Viton seal, 1-1/2" 140 170 6000 9202C
inlet, 1-1/4 outlet, NPT ports. PUMPS
9205C 7/8" solid keyed shaft, Viton seal, 2" inlet, 1-1/2" outlet 180 196 4200
NPT ports.
9206Cᵼᵼ 5/8" solid shaft and Viton shaft seal, 2" inlet, 1-1/2" outlet. 225 80 4200
NPT ports.
Rotation, clockwise or counterclockwise, is determined when looking at the shaft end of the
pump Life Guard silicon carbide seal - Add suffix “B” - (ie: 9203C-B)
®
† Universal flange (220 x 200) - Add suffix “U” - (ie: 9203C-U)
†† Universal flange (220 x 220) - Add suffix “U” - (ie: 9206C-U) 9203C-U

MODEL DESCRIPTION MAX MAX MAX
NUMBER GPM PSI RPM
9200 SERIES CI & SS, SELF-PRIMING PEDESTAL-MOUNT
MODELS

9203C-SP 5/8" solid shaft and Viton shaft seal, 1-1/2" inlet, 1-1/4" 120 157 6000
outlet. NPT ports.
9203C-R Clockwise rotation with 5/8" solid shaft, Viton seal, 2" inlet, 140 155 6000
-SP 2 outlet, NPT ports.
9203S- 5/8" stainless steel shaft, Life Guard® silicon carbide 120 157 6000
SP standard seal, 1-1/2" inlet, 1-1/4" outlet NPT ports.
9205C-SP 7/8" solid shaft,Viton shaft seal, 2" inlet, 2" outlet NPT ports 160 145 3800 9203C-SP

Life Guard® silicon carbide seal - Add suffix “B” (i.e.: 9205C-SP-B)
MODEL DESCRIPTION MAX MAX MAX
NUMBER GPM PSI RPM
9200 SERIES CI SELF-PRIMING PEDESTAL-MOUNT MODELS

9208C 1-5/8" solid keyed stainless steel shaft and Life Guard® 1400 85 3000
silicon carbide seal, 5” SAE-flanged inlet x 4” SAE-flanged
outlet
*CCW (counterclockwise) CW (clockwise) are determined when looking at the shaft end.
9208C
