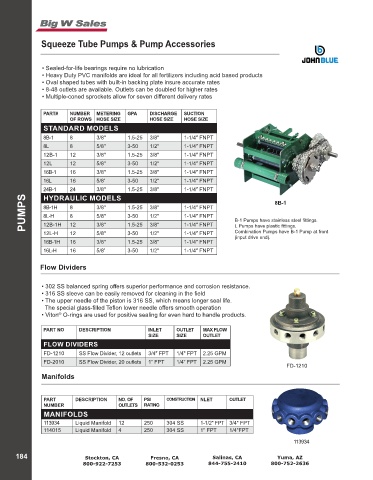

Page 186 - 2022 Online Catalog

Squeeze Tube Pumps & Pump Accessories

• Sealed-for-life bearings require no lubrication
• Heavy Duty PVC manifolds are ideal for all fertilizers including acid based products
• Oval shaped tubes with built-in backing plate insure accurate rates
• 8-48 outlets are available. Outlets can be doubled for higher rates
• Multiple-coned sprockets allow for seven different delivery rates

PART# NUMBER METERING GPA DISCHARGE SUCTION
OF ROWS HOSE SIZE HOSE SIZE HOSE SIZE
STANDARD MODELS
8B-1 8 3/8" 1.5-25 3/8" 1-1/4" FNPT
8L 8 5/8" 3-50 1/2" 1-1/4" FNPT
12B-1 12 3/8" 1.5-25 3/8" 1-1/4" FNPT
12L 12 5/8" 3-50 1/2" 1-1/4" FNPT
16B-1 16 3/8" 1.5-25 3/8" 1-1/4" FNPT
16L 16 5/8' 3-50 1/2" 1-1/4" FNPT
24B-1 24 3/8" 1.5-25 3/8" 1-1/4" FNPT
HYDRAULIC MODELS
PUMPS 8B-1H 8 3/8" 1.5-25 3/8" 1-1/4" FNPT B-1 Pumps have stainless steel fittings.
8B-1
8
8L-H
1/2"
1-1/4" FNPT
3-50
5/8"
12B-1H
Combination Pumps have B-1 Pump at front
1/2"
12
1-1/4" FNPT
12L-H 12 3/8" 1.5-25 3/8" 1-1/4" FNPT L Pumps have plastic fittings.
5/8"
3-50
(input drive end).
16B-1H 16 3/8" 1.5-25 3/8" 1-1/4" FNPT
16L-H 16 5/8' 3-50 1/2" 1-1/4" FNPT
Flow Dividers
• 302 SS balanced spring offers superior performance and corrosion resistance.
• 316 SS sleeve can be easily removed for cleaning in the field
• The upper needle of the piston is 316 SS, which means longer seal life.
The special glass-filled Teflon lower needle offers smooth operation
• Viton O-rings are used for positive sealing for even hard to handle products.
®
PART NO DESCRIPTION INLET OUTLET MAX FLOW
SIZE SIZE OUTLET
FLOW DIVIDERS
FD-1210 SS Flow Divider, 12 outlets 3/4" FPT 1/4" FPT 2.25 GPM
FD-2010 SS Flow Divider, 20 outlets 1” FPT 1/4” FPT 2.25 GPM
FD-1210
Manifolds

PART DESCRIPTION NO. OF PSI CONSTRUCTION NLET OUTLET
NUMBER OUTLETS RATING
MANIFOLDS
113934 Liquid Manifold 12 250 304 SS 1-1/2" FPT 3/4" FPT
114015 Liquid Manifold 4 250 304 SS 1" FPT 1/4"FPT
113934
