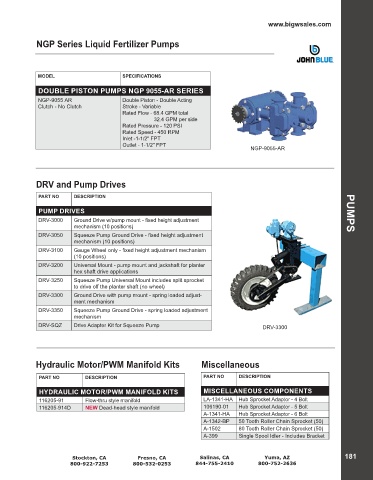

Page 183 - 2022 Online Catalog

www.bigwsales.com

NGP Series Liquid Fertilizer Pumps

MODEL SPECIFICATIONS

DOUBLE PISTON PUMPS NGP 9055-AR SERIES
NGP-9055 AR Double Piston - Double Acting
Clutch - No Clutch Stroke - Variable
Rated Flow - 68.4 GPM total
32.4 GPM per side
Rated Pressure - 120 PSI
Rated Speed - 450 RPM
Inlet -1-1/2" FPT
Outlet - 1-1/2" FPT
NGP-9055-AR

DRV and Pump Drives

PART NO DESCRIPTION

PUMP DRIVES PUMPS
DRV-3000 Ground Drive w/pump mount - fixed height adjustment
mechanism (10 positions)
DRV-3050 Squeeze Pump Ground Drive - fixed height adjustment
mechanism (10 positions)
DRV-3100 Gauge Wheel only - fixed height adjustment mechanism
(10 positions)
DRV-3200 Universal Mount - pump mount and jackshaft for planter
hex shaft drive applications
DRV-3250 Squeeze Pump Universal Mount includes split sprocket
to drive off the planter shaft (no wheel)
DRV-3300 Ground Drive with pump mount - spring loaded adjust-
ment mechanism
DRV-3350 Squeeze Pump Ground Drive - spring loaded adjustment
mechanism
DRV-SQZ Drive Adapter Kit for Squeeze Pump DRV-3300

Hydraulic Motor/PWM Manifold Kits Miscellaneous

PART NO DESCRIPTION PART NO DESCRIPTION

HYDRAULIC MOTOR/PWM MANIFOLD KITS MISCELLANEOUS COMPONENTS
116205-91 Flow-thru style manifold LA-1341-HA Hub Sprocket Adaptor - 4 Bolt
116205-914D NEW Dead-head style manifold 106190-01 Hub Sprocket Adaptor - 5 Bolt
A-1341-HA Hub Sprocket Adaptor - 6 Bolt
A-1342-BP 50 Tooth Roller Chain Sprocket (50)
A-1502 80 Tooth Roller Chain Sprocket (50)
A-399 Single Spool Idler - Includes Bracket
