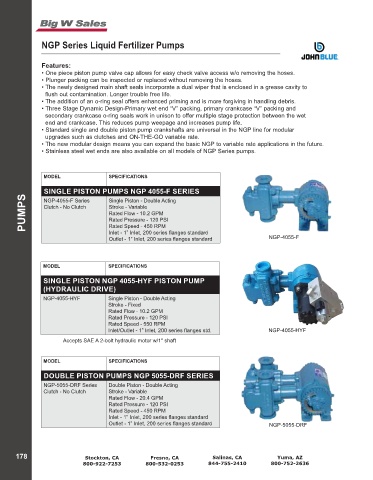

Page 180 - 2022 Online Catalog

NGP Series Liquid Fertilizer Pumps

Features:
• One piece piston pump valve cap allows for easy check valve access w/o removing the hoses.
• Plunger packing can be inspected or replaced without removing the hoses.
• The newly designed main shaft seals incorporate a dual wiper that is enclosed in a grease cavity to
flush out contamination. Longer trouble free life.
• The addition of an o-ring seal offers enhanced priming and is more forgiving in handling debris.
• Three Stage Dynamic Design-Primary wet end “V” packing, primary crankcase “V” packing and
secondary crankcase o-ring seals work in unison to offer multiple stage protection between the wet
end and crankcase. This reduces pump weepage and increases pump life.
• Standard single and double piston pump crankshafts are universal in the NGP line for modular
upgrades such as clutches and ON-THE-GO variable rate.
• The new modular design means you can expand the basic NGP to variable rate applications in the future.
• Stainless steel wet ends are also available on all models of NGP Series pumps.

MODEL SPECIFICATIONS

SINGLE PISTON PUMPS NGP 4055-F SERIES
PUMPS Clutch - No Clutch Stroke - Variable
Single Piston - Double Acting
NGP-4055-F Series
Rated Flow - 10.2 GPM
Rated Pressure - 120 PSI
Rated Speed - 450 RPM
Inlet - 1” Inlet, 200 series flanges standard
Outlet - 1” Inlet, 200 series flanges standard NGP-4055-F

MODEL SPECIFICATIONS

SINGLE PISTON NGP 4055-HYF PISTON PUMP
(HYDRAULIC DRIVE)
NGP-4055-HYF Single Piston - Double Acting
Stroke - Fixed
Rated Flow - 10.2 GPM
Rated Pressure - 120 PSI
Rated Speed - 550 RPM
Inlet/Outlet - 1” Inlet, 200 series flanges std. NGP-4055-HYF
Accepts SAE A 2-bolt hydraulic motor w/1" shaft

MODEL SPECIFICATIONS
DOUBLE PISTON PUMPS NGP 5055-DRF SERIES
NGP-5055-DRF Series Double Piston - Double Acting
Clutch - No Clutch Stroke - Variable
Rated Flow - 20.4 GPM
Rated Pressure - 120 PSI
Rated Speed - 450 RPM
Inlet - 1” Inlet, 200 series flanges standard
Outlet - 1” Inlet, 200 series flanges standard NGP-5055-DRF
