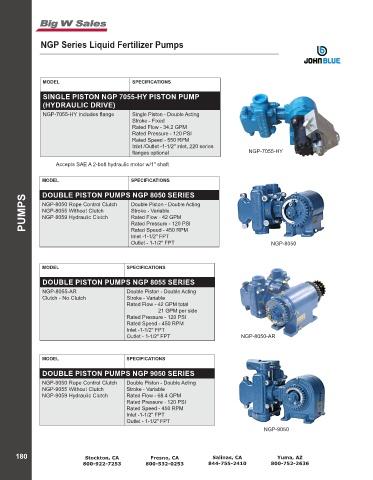

NGP Series Liquid Fertilizer Pumps

MODEL SPECIFICATIONS
SINGLE PISTON NGP 7055-HY PISTON PUMP
(HYDRAULIC DRIVE)
NGP-7055-HY includes flange Single Piston - Double Acting
Stroke - Fixed
Rated Flow - 34.2 GPM
Rated Pressure - 120 PSI
Rated Speed - 550 RPM
Inlet /Outlet -1-1/2" inlet, 220 series
flanges optional NGP-7055-HY

Accepts SAE A 2-bolt hydraulic motor w/1" shaft

MODEL SPECIFICATIONS

DOUBLE PISTON PUMPS NGP 8050 SERIES
PUMPS NGP-8050 Rope Control Clutch Double Piston - Double Acting

NGP-8055 Without Clutch
Stroke - Variable
NGP-8059 Hydraulic Clutch
Rated Flow - 42 GPM
Rated Pressure - 120 PSI
Rated Speed - 450 RPM
Inlet -1-1/2" FPT
Outlet - 1-1/2" FPT NGP-8050

MODEL SPECIFICATIONS
DOUBLE PISTON PUMPS NGP 8055 SERIES

NGP-8055-AR Double Piston - Double Acting
Clutch - No Clutch Stroke - Variable
Rated Flow - 42 GPM total
21 GPM per side
Rated Pressure - 120 PSI
Rated Speed - 450 RPM
Inlet -1-1/2" FPT
Outlet - 1-1/2" FPT NGP-8050-AR

MODEL SPECIFICATIONS

DOUBLE PISTON PUMPS NGP 9050 SERIES
NGP-9050 Rope Control Clutch Double Piston - Double Acting
NGP-9055 Without Clutch Stroke - Variable
NGP-9059 Hydraulic Clutch Rated Flow - 68.4 GPM
Rated Pressure - 120 PSI
Rated Speed - 450 RPM
Inlet -1-1/2" FPT
Outlet - 1-1/2" FPT
NGP-9050
