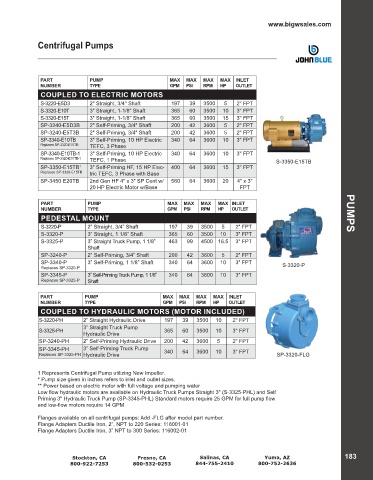

Page 185 - 2022 Online Catalog

www.bigwsales.com

Centrifugal Pumps

PART PUMP MAX MAX MAX MAX INLET
NUMBER TYPE GPM PSI RPM HP OUTLET
COUPLED TO ELECTRIC MOTORS
S-3220-E5D3 2" Straight, 3/4" Shaft 197 39 3500 5 2" FPT
S-3320-E10T 3" Straight, 1-1/8" Shaft 365 60 3500 10 3" FPT
S-3320-E15T 3" Straight, 1-1/8" Shaft 365 60 3500 15 3" FPT
SP-3240-E5D3B 2" Self-Priming, 3/4" Shaft 200 42 3600 5 2" FPT
SP-3240-E5T3B 2" Self-Priming, 3/4" Shaft 200 42 3600 5 2" FPT
SP-3340-E10TB 3" Self-Priming, 10 HP Electric 340 64 3600 10 3" FPT
Replaces SP-3320-E10TB TEFC, 3 Phase
SP-3340-E10TB-1 3" Self-Priming, 10 HP Electric 340 64 3600 10 3" FPT
Replaces SP-3320-E10TB-1 TEFC, 1 Phase S-3350-E15TB
SP-3350-E15TB 1 3" Self-Priming HF, 15 HP Elec- 400 64 3600 15 3" FPT
Replaces SP-3320-E15TB tric TEFC, 3 Phase with Base
SP-3450 E20TB 2nd Gen HF 4" x 3" SP Cent w/ 560 64 3600 20 4" x 3"
20 HP Electric Motor w/Base FPT

PART PUMP MAX MAX MAX MAX INLET
NUMBER TYPE GPM PSI RPM HP OUTLET
PEDESTAL MOUNT PUMPS
S-3220-P 2” Straight, 3/4” Shaft 197 39 3500 5 2" FPT
S-3320-P 3” Straight, 1 1/8” Shaft 365 60 3500 10 3" FPT
S-3325-P 3” Straight Truck Pump, 1 1/8” 463 99 4500 16.5 3" FPT
Shaft
SP-3240-P 2” Self-Priming, 3/4” Shaft 200 42 3600 5 2" FPT
SP-3340-P 3” Self-Priming, 1 1/8” Shaft 340 64 3600 10 3" FPT S-3320-P
Replaces SP-3320-P
SP-3345-P 3” Self-Priming Truck Pump, 1 1/8” 340 64 3600 10 3" FPT
Replaces SP-3325-P Shaft

PART PUMP MAX MAX MAX MAX INLET
NUMBER TYPE GPM PSI RPM HP OUTLET
COUPLED TO HYDRAULIC MOTORS (MOTOR INCLUDED)
S-3220-PH 2” Straight Hydraulic Drive 197 39 3500 10 2" FPT
3” Straight Truck Pump
S-3325-PH 365 60 3500 10 3" FPT
Hydraulic Drive
SP-3240-PH 2” Self-Priming Hydraulic Drive 200 42 3600 5 2" FPT
SP-3345-PH 3” Self-Priming Truck Pump 340 64 3600 10 3" FPT
Replaces SP-3325-PH Hydraulic Drive SP-3320-FLG

1 Represents Centrifugal Pump utilizing New Impeller.
* Pump size given in inches refers to inlet and outlet sizes.
** Power based on electric motor with full voltage and pumping water
Low flow hydraulic motors are available on Hydraulic Truck Pumps Straight 3" (S-3325-PHL) and Self
Priming 3" Hydraulic Truck Pump (SP-3345-PHL) Standard motors require 25 GPM for full pump flow
and low-flow motors require 14 GPM
Flanges available on all centrifugal pumps: Add -FLG after model part number.
Flange Adapters Ductile Iron, 2”, NPT to 220 Series: 116001-01
Flange Adapters Ductile Iron, 3” NPT to 300 Series: 116002-01
