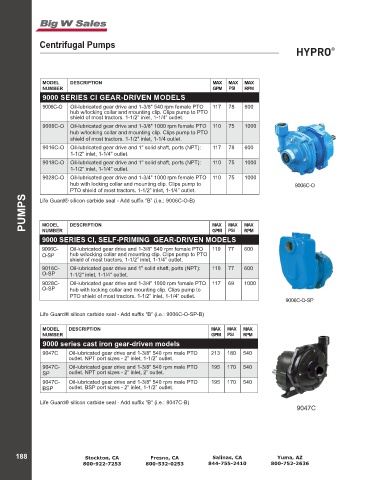

Page 190 - 2022 Online Catalog

Centrifugal Pumps

MODEL DESCRIPTION MAX MAX MAX
NUMBER GPM PSI RPM
9000 SERIES CI GEAR-DRIVEN MODELS
9006C-O Oil-lubricated gear drive and 1-3/8" 540 rpm female PTO 117 78 600
hub w/locking collar and mounting clip. Clips pump to PTO
shield of most tractors. 1-1/2” inlet, 1-1/4” outlet.
9008C-O Oil-lubricated gear drive and 1-3/8" 1000 rpm female PTO 110 75 1000
hub w/locking collar and mounting clip. Clips pump to PTO
shield of most tractors. 1-1/2" inlet, 1-1/4 outlet.
9016C-O Oil-lubricated gear drive and 1" solid shaft, ports (NPT): 117 78 600
1-1/2" inlet, 1-1/4" outlet.
9018C-O Oil-lubricated gear drive and 1" solid shaft, ports (NPT): 110 75 1000
1-1/2" inlet, 1-1/4" outlet.
9028C-O Oil-lubricated gear drive and 1-3/4" 1000 rpm female PTO 110 75 1000
hub with locking collar and mounting clip. Clips pump to 9006C-O
PTO shield of most tractors. 1-1/2” inlet, 1-1/4” outlet.
PUMPS MODEL DESCRIPTION MAX MAX MAX
Life Guard® silicon carbide seal - Add suffix “B” (i.e.: 9006C-O-B)

GPM
PSI
NUMBER
9000 SERIES CI, SELF-PRIMING GEAR-DRIVEN MODELS RPM
9006C- Oil-lubricated gear drive and 1-3/8" 540 rpm female PTO 119 77 600
O-SP hub w/locking collar and mounting clip. Clips pump to PTO
shield of most tractors. 1-1/2” inlet, 1-1/4” outlet.
9016C- Oil-lubricated gear drive and 1" solid shaft, ports (NPT): 119 77 600
O-SP 1-1/2" inlet, 1-1/4" outlet.
9028C- Oil-lubricated gear drive and 1-3/4" 1000 rpm female PTO 117 69 1000
O-SP hub with locking collar and mounting clip. Clips pump to
PTO shield of most tractors. 1-1/2” inlet, 1-1/4” outlet.
9006C-O-SP

Life Guard® silicon carbide seal - Add suffix “B” (i.e.: 9006C-O-SP-B)

MODEL DESCRIPTION MAX MAX MAX
NUMBER GPM PSI RPM
9000 series cast iron gear-driven models
9047C Oil-lubricated gear drive and 1-3/8" 540 rpm male PTO 213 180 540
outlet. NPT port sizes - 2” inlet, 1-1/2” outlet.
9047C- Oil-lubricated gear drive and 1-3/8" 540 rpm male PTO 195 170 540
SP outlet. NPT port sizes - 2” inlet, 2” outlet.
9047C- Oil-lubricated gear drive and 1-3/8" 540 rpm male PTO 195 170 540
BSP outlet. BSP port sizes - 2” inlet, 1-1/2” outlet.

Life Guard® silicon carbide seal - Add suffix “B” (i.e.: 9047C-B)
9047C
