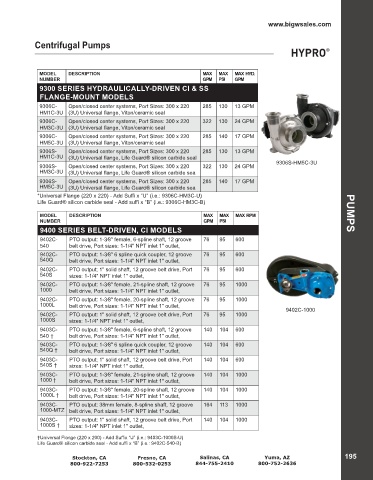

Page 197 - 2022 Online Catalog

www.bigwsales.com

Centrifugal Pumps

MODEL DESCRIPTION MAX MAX MAX HYD.
NUMBER GPM PSI GPM
9300 SERIES HYDRAULICALLY-DRIVEN CI & SS
FLANGE-MOUNT MODELS

9306C- Open/closed center systems, Port Sizes: 300 x 220 285 130 13 GPM
HM1C-3U (3U) Universal flange, Viton/ceramic seal
9306C- Open/closed center systems, Port Sizes: 300 x 220 322 130 24 GPM
HM3C-3U (3U) Universal flange, Viton/ceramic seal
9306C- Open/closed center systems, Port Sizes: 300 x 220 285 140 17 GPM
HM5C-3U (3U) Universal flange, Viton/ceramic seal
9306S- Open/closed center systems, Port Sizes: 300 x 220 285 130 13 GPM
HM1C-3U (3U) Universal flange, Life Guard® silicon carbide seal
9306S-HM5C-3U
9306S- Open/closed center systems, Port Sizes: 300 x 220 322 130 24 GPM
HM3C-3U (3U) Universal flange, Life Guard® silicon carbide sea
9306S- Open/closed center systems, Port Sizes: 300 x 220 285 140 17 GPM
HM5C-3U (3U) Universal flange, Life Guard® silicon carbide sea
*Universal Flange (220 x 220) - Add Suffi x “U” (i.e.: 9306C-HM3C-U)
Life Guard® silicon carbide seal - Add suffi x “B” (i.e.: 9306C-HM3C-B)

MODEL DESCRIPTION MAX MAX MAX RPM PUMPS
NUMBER GPM PSI
9400 SERIES BELT-DRIVEN, CI MODELS
9402C- PTO output: 1-3⁄8" female, 6-spline shaft, 12 groove 76 95 600
540 belt drive, Port sizes: 1-1/4" NPT inlet 1" outlet,
9402C- PTO output: 1-3⁄8" 6 spline quick coupler, 12 groove 76 95 600
540Q belt drive, Port sizes: 1-1/4" NPT inlet 1" outlet,
9402C- PTO output; 1" solid shaft, 12 groove belt drive, Port 76 95 600
540S sizes: 1-1/4" NPT inlet 1" outlet,
9402C- PTO output: 1-3⁄8" female, 21-spline shaft, 12 groove 76 95 1000
1000 belt drive, Port sizes: 1-1/4" NPT inlet 1" outlet,
9402C- PTO output: 1-3⁄8" female, 20-spline shaft, 12 groove 76 95 1000
1000L belt drive, Port sizes: 1-1/4" NPT inlet 1" outlet,
9402C-1000
9402C- PTO output: 1" solid shaft, 12 groove belt drive, Port 76 95 1000
1000S sizes: 1-1/4" NPT inlet 1" outlet,
9403C- PTO output: 1-3⁄8" female, 6-spline shaft, 12 groove 140 104 600
540 † belt drive, Port sizes: 1-1/4" NPT inlet 1" outlet,
9403C- PTO output: 1-3⁄8" 6 spline quick coupler, 12 groove 140 104 600
540Q † belt drive, Port sizes: 1-1/4" NPT inlet 1" outlet,
9403C- PTO output; 1" solid shaft, 12 groove belt drive, Port 140 104 600
540S † sizes: 1-1/4" NPT inlet 1" outlet,
9403C- PTO output: 1-3⁄8" female, 21-spline shaft, 12 groove 140 104 1000
1000 † belt drive, Port sizes: 1-1/4" NPT inlet 1" outlet,
9403C- PTO output: 1-3⁄8" female, 20-spline shaft, 12 groove 140 104 1000
1000L † belt drive, Port sizes: 1-1/4" NPT inlet 1" outlet,

9403C- PTO output: 38mm female, 8-spline shaft, 12 groove 164 113 1000
1000-MTZ belt drive, Port sizes: 1-1/4" NPT inlet 1" outlet,
9403C- PTO output: 1" solid shaft, 12 groove belt drive, Port 140 104 1000
1000S † sizes: 1-1/4" NPT inlet 1" outlet,

†Universal Flange (220 x 200) - Add Suffix “U” (i.e.: 9403C-1000S-U)
Life Guard® silicon carbide seal - Add suffi x “B” (i.e.: 9402C-540-B)
