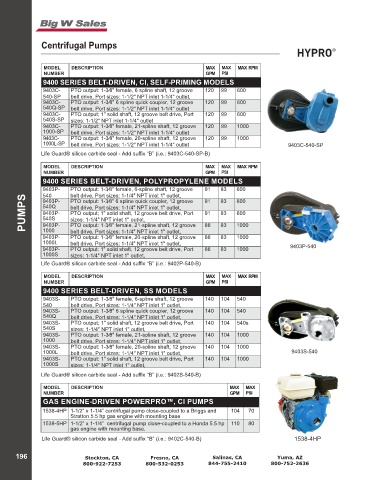

Page 198 - 2022 Online Catalog

Centrifugal Pumps

MODEL DESCRIPTION MAX MAX MAX RPM
NUMBER GPM PSI
9400 SERIES BELT-DRIVEN, CI, SELF-PRIMING MODELS
9403C- PTO output: 1-3⁄8" female, 6 spline shaft, 12 groove 120 99 600
540-SP belt drive, Port sizes: 1-1/2" NPT inlet 1-1/4" outlet,
9403C- PTO output: 1-3⁄8" 6 spline quick coupler, 12 groove 120 99 600
540Q-SP belt drive, Port sizes: 1-1/2" NPT inlet 1-1/4" outlet
9403C- PTO output; 1" solid shaft, 12 groove belt drive, Port 120 99 600
540S-SP sizes: 1-1/2" NPT inlet 1-1/4" outlet
9403C- PTO output: 1-3⁄8" female, 21-spline shaft, 12 groove 120 99 1000
1000-SP belt drive, Port sizes: 1-1/2" NPT inlet 1-1/4" outlet
9403C- PTO output: 1-3⁄8" female, 20-spline shaft, 12 groove 120 99 1000
1000L-SP belt drive, Port sizes: 1-1/2" NPT inlet 1-1/4" outlet 9403C-540-SP
Life Guard® silicon carbide seal - Add suffix “B” (i.e.: 9403C-540-SP-B)
MODEL DESCRIPTION MAX MAX MAX RPM
NUMBER GPM PSI
9400 SERIES BELT-DRIVEN, POLYPROPYLENE MODELS
9403P- PTO output: 1-3⁄8" female, 6-spline shaft, 12 groove 91 83 600
540
belt drive, Port sizes: 1-1/4" NPT inlet 1" outlet,
PUMPS 9403P- PTO output: 1-3⁄8" 6 spline quick coupler, 12 groove 91 83 600
540Q
belt drive, Port sizes: 1-1/4" NPT inlet 1" outlet,
9403P-
PTO output; 1" solid shaft, 12 groove belt drive, Port
91
83
600
540S
sizes: 1-1/4" NPT inlet 1" outlet,
83
PTO output: 1-3⁄8" female, 21-spline shaft, 12 groove
1000
9403P-
86
1000
9403P- belt drive, Port sizes: 1-1/4" NPT inlet 1" outlet, 86 83 1000
PTO output: 1-3⁄8" female, 20-spline shaft, 12 groove
1000L belt drive, Port sizes: 1-1/4" NPT inlet 1" outlet,
9403P- PTO output: 1" solid shaft, 12 groove belt drive, Port 86 83 1000 9403P-540
1000S sizes: 1-1/4" NPT inlet 1" outlet,
Life Guard® silicon carbide seal - Add suffix “B” (i.e.: 9402P-540-B)
MODEL DESCRIPTION MAX MAX MAX RPM
NUMBER GPM PSI
9400 SERIES BELT-DRIVEN, SS MODELS
9403S- PTO output: 1-3⁄8" female, 6-spline shaft, 12 groove 140 104 540
540 belt drive, Port sizes: 1-1/4" NPT inlet 1" outlet,
9403S- PTO output: 1-3⁄8" 6 spline quick coupler, 12 groove 140 104 540
540Q belt drive, Port sizes: 1-1/4" NPT inlet 1" outlet,
9403S- PTO output; 1" solid shaft, 12 groove belt drive, Port 140 104 540s
540S sizes: 1-1/4" NPT inlet 1" outlet,
9403S- PTO output: 1-3⁄8" female, 21-spline shaft, 12 groove 140 104 1000
1000 belt drive, Port sizes: 1-1/4" NPT inlet 1" outlet,
9403S- PTO output: 1-3⁄8" female, 20-spline shaft, 12 groove 140 104 1000
1000L belt drive, Port sizes: 1-1/4" NPT inlet 1" outlet, 9403S-540
9403S- PTO output: 1" solid shaft, 12 groove belt drive, Port 140 104 1000
1000S sizes: 1-1/4" NPT inlet 1" outlet,
Life Guard® silicon carbide seal - Add suffix “B” (i.e.: 9402S-540-B)
MODEL DESCRIPTION MAX MAX
NUMBER GPM PSI
GAS ENGINE-DRIVEN POWERPRO™, CI PUMPS
1538-4HP 1-1/2” x 1-1/4” centrifugal pump close-coupled to a Briggs and 104 70
Stratton 5.5 hp gas engine with mounting base
1538-5HP 1-1/2” x 1-1/4” centrifugal pump close-coupled to a Honda 5.5 hp 110 80
gas engine with mounting base.
Life Guard® silicon carbide seal - Add suffix “B” (i.e.: 9402C-540-B) 1538-4HP
