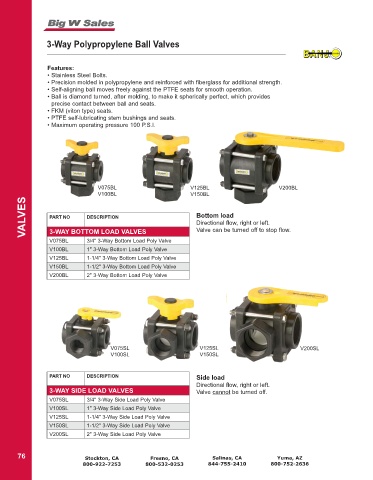

Page 78 - 2022 Online Catalog

3-Way Polypropylene Ball Valves

Features:
• Stainless Steel Bolts.
• Precision molded in polypropylene and reinforced with fiber glass for additional strength.
• Self-aligning ball moves freely against the PTFE seats for smooth operation.
• Ball is diamond turned, after molding, to make it spherically perfect, which provides
precise contact between ball and seats.
• FKM (viton type) seats.
• PTFE self-lubricating stem bushings and seats.
• Maximum operating pressure 100 P.S.I.

V075BL V125BL V200BL
V100BL V150BL
VALVES PART NO DESCRIPTION Bottom load

Directional flow, right or left.
3-WAY BOTTOM LOAD VALVES
V075BL 3/4" 3-Way Bottom Load Poly Valve Valve can be turned off to stop flow.
V100BL 1" 3-Way Bottom Load Poly Valve
V125BL 1-1/4" 3-Way Bottom Load Poly Valve
V150BL 1-1/2" 3-Way Bottom Load Poly Valve
V200BL 2" 3-Way Bottom Load Poly Valve

V075SL V125SL V200SL
V100SL V150SL

PART NO DESCRIPTION Side load
Directional flow, right or left.
3-WAY SIDE LOAD VALVES Valve cannot be turned off.

V075SL 3/4" 3-Way Side Load Poly Valve
V100SL 1" 3-Way Side Load Poly Valve
V125SL 1-1/4" 3-Way Side Load Poly Valve
V150SL 1-1/2" 3-Way Side Load Poly Valve
V200SL 2" 3-Way Side Load Poly Valve
