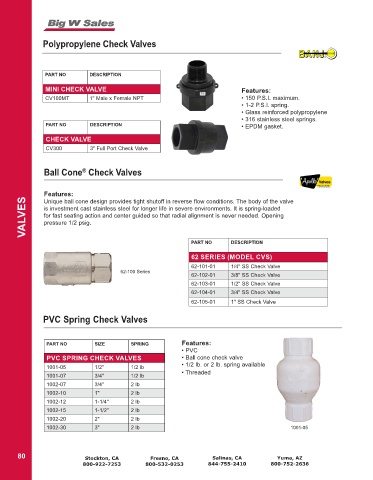

Page 82 - 2022 Online Catalog

Polypropylene Check Valves

PART NO DESCRIPTION

MINI CHECK VALVE Features:
CV100MT 1" Male x Female NPT • 150 P.S.I. maximum.
• 1-2 P.S.I. spring.
• Glass reinforced polypropylene
• 316 stainless steel springs.
PART NO DESCRIPTION • EPDM gasket.
CHECK VALVE
CV300 3" Full Port Check Valve

Ball Cone Check Valves
®

Features:
VALVES is investment cast stainless steel for longer life in severe environments. It is spring-loaded
Unique ball cone design provides tight shutoff in reverse flow conditions. The body of the valve
for fast seating action and center guided so that radial alignment is never needed. Opening
pressure 1/2 psig.

PART NO DESCRIPTION

62 SERIES (MODEL CVS)
62-101-01 1/4" SS Check Valve
62-100 Series
62-102-01 3/8" SS Check Valve
62-103-01 1/2" SS Check Valve
62-104-01 3/4" SS Check Valve
62-105-01 1" SS Check Valve

PVC Spring Check Valves

PART NO SIZE SPRING Features:
• PVC
PVC SPRING CHECK VALVES • Ball cone check valve

1001-05 1/2" 1/2 lb • 1/2 lb. or 2 lb. spring available
1001-07 3/4" 1/2 lb • Threaded
1002-07 3/4" 2 lb
1002-10 1" 2 lb
1002-12 1-1/4" 2 lb
1002-15 1-1/2" 2 lb
1002-20 2" 2 lb
1002-30 3" 2 lb 1001-05
