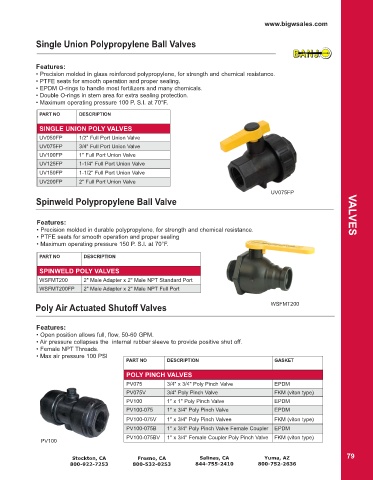

Page 81 - 2022 Online Catalog

www.bigwsales.com

Single Union Polypropylene Ball Valves

Features:
• Precision molded in glass reinforced polypropylene, for strength and chemical resistance.
• PTFE seats for smooth operation and proper sealing.
• EPDM O-rings to handle most fertilizers and many chemicals.
• Double O-rings in stem area for extra sealing protection.
• Maximum operating pressure 100 P. S.I. at 70°F.
PART NO DESCRIPTION

SINGLE UNION POLY VALVES
UV050FP 1/2" Full Port Union Valve
UV075FP 3/4" Full Port Union Valve
UV100FP 1" Full Port Union Valve
UV125FP 1-1/4" Full Port Union Valve
UV150FP 1-1/2" Full Port Union Valve
UV200FP 2" Full Port Union Valve
UV075FP
Spinweld Polypropylene Ball Valve

Features: VALVES
• Precision molded in durable polypropylene, for strength and chemical resistance.
• PTFE seats for smooth operation and proper sealing
• Maximum operating pressure 150 P. S.I. at 70°F.
PART NO DESCRIPTION

SPINWELD POLY VALVES
WSFMT200 2" Male Adapter x 2" Male NPT Standard Port
WSFMT200FP 2" Male Adapter x 2" Male NPT Full Port

Poly Air Actuated Shutoff Valves WSFMT200

Features:
• Open position allows full, flow, 50-60 GPM.
• Air pressure collapses the internal rubber sleeve to provide positive shut off.
• Female NPT Threads.
• Max air pressure 100 PSI
PART NO DESCRIPTION GASKET

POLY PINCH VALVES
PV075 3/4" x 3/4" Poly Pinch Valve EPDM
PV075V 3/4" Poly Pinch Valve FKM (viton type)
PV100 1" x 1" Poly Pinch Valve EPDM
PV100-075 1" x 3/4" Poly Pinch Valve EPDM
PV100-075V 1" x 3/4" Poly Pinch Valvee FKM (viton type)
PV100-075B 1" x 3/4" Poly Pinch Valve Female Coupler EPDM
PV100-075BV 1" x 3/4" Female Coupler Poly Pinch Valve FKM (viton type)
PV100
