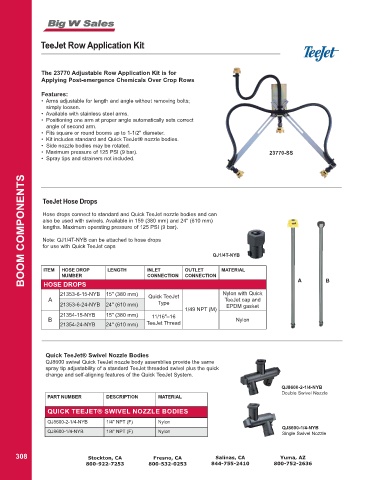

Page 310 - 2022 Online Catalog

TeeJet Row Application Kit

The 23770 Adjustable Row Application Kit is for
Applying Post-emergence Chemicals Over Crop Rows

Features:
• Arms adjustable for length and angle without removing bolts;
simply loosen.
• Available with stainless steel arms.
• Positioning one arm at proper angle automatically sets correct
angle of second arm.
• Fits square or round booms up to 1-1/2" diameter.
• Kit includes standard and Quick TeeJet® nozzle bodies.
• Side nozzle bodies may be rotated.
• Maximum pressure of 125 PSI (9 bar). 23770-SS
• Spray tips and strainers not included.

BOOM COMPONENTS

TeeJet Hose Drops

Hose drops connect to standard and Quick TeeJet nozzle bodies and can
also be used with swivels. Available in 159 (380 mm) and 24" (610 mm)
lengths. Maximum operating pressure of 125 PSI (9 bar).

Note: QJ1/4T-NYB can be attached to hose drops
for use with Quick TeeJet caps
QJ1/4T-NYB

ITEM HOSE DROP LENGTH INLET OUTLET MATERIAL
NUMBER CONNECTION CONNECTION
HOSE DROPS A B
21353-6-15-NYB 15" (380 mm) Quick TeeJet Nylon with Quick
A TeeJet cap and
21353-6-24-NYB 24" (610 mm) Type EPDM gasket
1/49 NPT (M)
21354-15-NYB 15" (380 mm) 11/16"–16
B Nylon
21354-24-NYB 24" (610 mm) TeeJet Thread

Quick TeeJet® Swivel Nozzle Bodies
QJ8600 swivel Quick TeeJet nozzle body assemblies provide the same
spray tip adjustability of a standard TeeJet threaded swivel plus the quick
change and self-aligning features of the Quick TeeJet System.

QJ8600-2-1/4-NYB
Double Swivel Nozzle
PART NUMBER DESCRIPTION MATERIAL

QUICK TEEJET® SWIVEL NOZZLE BODIES
QJ8600-2-1/4-NYB 1/4" NPT (F) Nylon
QJ8600-1/4-NYB
QJ8600-1/4-NYB 1/4" NPT (F) Nylon Single Swivel Nozzle
