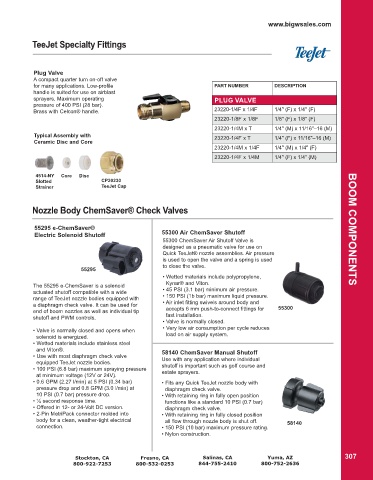

TeeJet Specialty Fittings

Plug Valve
A compact quarter turn on-off valve
for many applications. Low-profile PART NUMBER DESCRIPTION
handle is suited for use on airblast
sprayers. Maximum operating PLUG VALVE
pressure of 400 PSI (28 bar).
Brass with Celcon® handle. 23220-1/4F x 1/4F 1/4" (F) x 1/4" (F)
23220-1/8F x 1/8F 1/8" (F) x 1/8" (F)
23220-1/4M x T 1/4" (M) x 11/16"–16 (M)
Typical Assembly with 23220-1/4F x T 1/4" (F) x 11/16"–16 (M)
Ceramic Disc and Core
23220-1/4M x 1/4F 1/4" (M) x 1/4" (F)
23220-1/4F x 1/4M 1/4" (F) x 1/4" (M)

4514-NY Core Disc
Slotted CP20230
Strainer TeeJet Cap

Nozzle Body ChemSaver® Check Valves

55295 e-ChemSaver® BOOM COMPONENTS
Electric Solenoid Shutoff 55300 Air ChemSaver Shutoff
55300 ChemSaver Air Shutoff Valve is
designed as a pneumatic valve for use on
Quick TeeJet® nozzle assemblies. Air pressure
is used to open the valve and a spring is used
to close the valve.
55295
• Wetted materials include polypropylene,
The 55295 e-ChemSaver is a solenoid Kynar® and Viton.
actuated shutoff compatible with a wide • 45 PSI (3.1 bar) minimum air pressure.
range of TeeJet nozzle bodies equipped with • 150 PSI (1b bar) maximum liquid pressure.
a diaphragm check valve. It can be used for • Air inlet fitting swivels around body and 55300
end of boom nozzles as well as individual tip accepts 6 mm push-to-connect fittings for
shutoff and PWM controls. fast installation.
• Valve is normally closed.
• Valve is normally closed and opens when • Very low air consumption per cycle reduces
solenoid is energized. load on air supply system.
• Wetted materials include stainless steel
and Viton®. 58140 ChemSaver Manual Shutoff
• Use with most diaphragm check valve Use with any application where individual
equipped TeeJet nozzle bodies. shutoff is important such as golf course and
• 100 PSI (6.8 bar) maximum spraying pressure estate sprayers.
at minimum voltage (12V or 24V).
• 0.6 GPM (2.27 l/min) at 5 PSI (0.34 bar) • Fits any Quick TeeJet nozzle body with
pressure drop and 0.8 GPM (3.0 l/min) at diaphragm check valve.
10 PSI (0.7 bar) pressure drop. • With retaining ring in fully open position
• ¼ second response time. functions like a standard 10 PSI (0.7 bar)
• Offered in 12- or 24-Volt DC version. diaphragm check valve.
• 2-Pin MetriPack connector molded into • With retaining ring in fully closed position
body for a clean, weather-tight electrical all flow through nozzle body is shut off. 58140
connection. • 150 PSI (10 bar) maximum pressure rating.
• Nylon construction.
