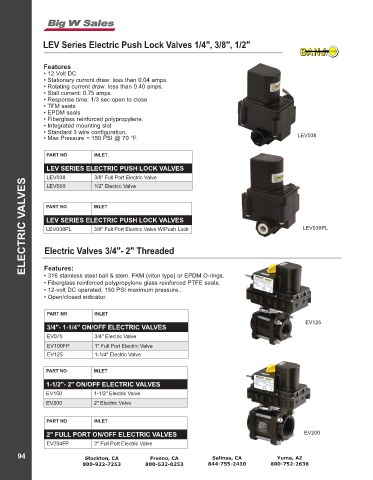

Page 96 - 2022 Online Catalog
P. 96

LEV Series Electric Push Lock Valves 1/4", 3/8", 1/2"



                Features
                • 12 Volt DC
                • Stationary current draw: less than 0.04 amps.
                • Rotating current draw: less than 0.40 amps.
                • Stall current: 0.75 amps
                • Response time: 1/3 sec open to close
                • TFM seats
                • EPDM seals
                • Fiberglass reinforced polypropylene.
                • Integrated mounting slot
                • Standard 3 wire configuration.
                • Max Pressure = 150 PSI @ 70 °F.                                                     LEV038


                 PART NO         INLET
                 LEV SERIES ELECTRIC PUSH LOCK VALVES

                 LEV038          3/8" Full Port Electric Valve
          ELECTRIC VALVES  Electric Valves 3/4"- 2" Threaded                                           LEV038PL
                                 1/2" Electric Valve
                 LEV050

                 PART NO
                                 INLET
                 LEV SERIES ELECTRIC PUSH LOCK VALVES
                                 3/8" Full Port Electric Valve W/Push Lock
                 LEV038PL





                Features:
                • 316 stainless steel ball & stem. FKM (viton type) or EPDM O-rings.
                • Fiberglass reinforced polypropylene glass reinforced PTFE seats.
                • 12-volt DC operated, 150 PSI maximum pressure..
                • Open/closed indicator.


                 PART NO         INLET
                                                                                                        EV125
                 3/4"- 1-1/4" ON/OFF ELECTRIC VALVES
                 EV075           3/4" Electric Valve
                 EV100FP         1" Full Port Electric Valve
                 EV125           1-1/4" Electric Valve


                 PART NO         INLET
                 1-1/2"- 2" ON/OFF ELECTRIC VALVES
                 EV150           1-1/2" Electric Valve
                 EV200           2" Electric Valve


                 PART NO         INLET

                 2" FULL PORT ON/OFF ELECTRIC VALVES                                                    EV200
                 EV204FP         2" Full Port Electric Valve
