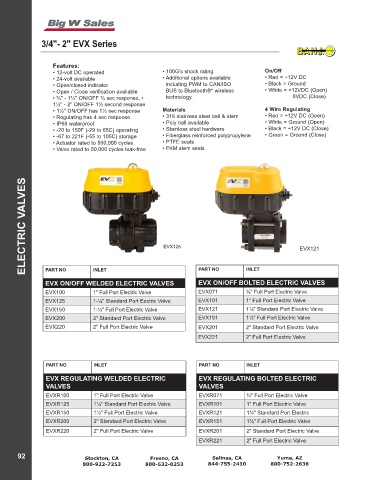

Page 94 - 2022 Online Catalog
P. 94
3/4"- 2" EVX Series
Features:
• 12-volt DC operated • 100G’s shock rating On/Off
• 24-volt available • Additional options available • Red = +12V DC
• Open/closed indicator including PWM to CAN/ISO • Black = Ground
• Open / Close verification available BUS to Bluetooth®* wireless • White = +12VDC (Open)
• ¾" - 1¼" ON/OFF ¾ sec response, • technology. 0VDC (Close)
1½" - 2" ON/OFF 1½ second response
• 1½" ON/OFF has 1½ sec response Materials 4 Wire Regulating
• Regulating has 4 sec response • 316 stainless steel ball & stem • Red = +12V DC (Open)
• IP68 waterproof • Poly ball available • White = Ground (Open)
• -20 to 150F (-29 to 65C) operating • Stainless steel hardware • Black = +12V DC (Close)
• -67 to 221F (-55 to 105C) storage • Fiberglass reinforced polypropylene • Green = Ground (Close)
• Actuator rated to 500,000 cycles • PTFE seats
• Valve rated to 50,000 cycles leak-free • FKM stem seals
ELECTRIC VALVES EVX125 EVX121
PART NO
INLET
EVX ON/OFF BOLTED ELECTRIC VALVES
EVX ON/OFF WELDED ELECTRIC VALVES PART NO INLET
EVX100 1" Full Port Electric Valve EVX071 ¾" Full Port Electric Valve
EVX125 1-¼" Standard Port Eectric Valve EVX101 1" Full Port Electric Valve
EVX150 1-½" Full Port Electric Valve EVX121 1¼" Standard Port Electric Valve
EVX200 2" Standard Port Electric Valve EVX151 1½" Full Port Electric Valve
EVX220 2" Full Port Electric Valve EVX201 2" Standard Port Electric Valve
EVX221 2" Full Port Electric Valve
PART NO INLET PART NO INLET
EVX REGULATING WELDED ELECTRIC EVX REGULATING BOLTED ELECTRIC
VALVES VALVES
EVXR100 1" Full Port Electric Valve EVXR071 ¾" Full Port Electric Valve
EVXR125 1¼" Standard Port Electric Valve EVXR101 1" Full Port Electric Valve
EVXR150 1½" Full Port Electric Valve EVXR121 1¼" Standard Port Electric
EVXR200 2" Standard Port Electric Valve EVXR151 1½" Full Port Electric Valve
EVXR220 2" Full Port Electric Valve EVXR201 2" Standard Port Electric Valve
EVXR221 2" Full Port Electric Valve
