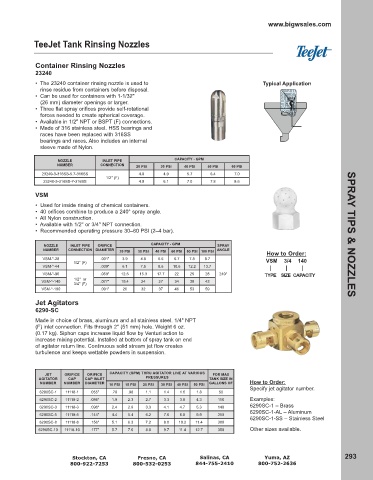

Page 295 - 2022 Online Catalog

www.bigwsales.com.bigwsales.com
www

TeeJet Tank Rinsing Nozzles

Container Rinsing Nozzles
23240

• The 23240 container rinsing nozzle is used to Typical Application
rinse residue from containers before disposal.
• Can be used for containers with 1-1/32"
(26 mm) diameter openings or larger.
• Three flat spray orifices provide self-rotational
forces needed to create spherical coverage.
• Available in 1/2" NPT or BSPT (F) connections.
• Made of 316 stainless steel. HSS bearings and
races have been replaced with 316SS
bearings and races. Also includes an internal
sleeve made of Nylon.

NOZZLE INLET PIPE CAPACITY - GPM
NUMBER CONNECTION 20 PSI 30 PSI 40 PSI 50 PSI 60 PSI
23240-3-316SS-5.7-316SS 4.0 4.9 5.7 6.4 7.0
1/2" (F)
23240-3-316SS-7-316SS 4.9 6.1 7.0 7.8 8.6
VSM
• Used for inside rinsing of chemical containers.
• 40 orifices combine to produce a 240° spray angle. PUMPS
• All Nylon construction.
• Available with 1/2" or 3/4" NPT connection.
• Recommended operating pressure 30–60 PSI (2–4 bar). SPRAY TIPS & NOZZLES

NOZZLE INLET PIPE ORIFICE CAPACITY - GPM SPRAY
NUMBER CONNECTION DIAMETER 20 PSI 30 PSI 40 PSI 60 PSI 80 PSI 100 PSI ANGLE How to Order:
VSM-*-28 .031" 3.9 4.8 5.5 6.7 7.8 8.7 VSM 3/4 140
1/2" (F)
VSM-*-44 .039" 6.1 7.5 8.6 10.6 12.2 13.7 | | |
VSM-*-90 .059" 12.5 15.3 17.7 22 25 28 240° TYPE SIZE CAPACITY
VSM-*-140 1/2" or .077" 19.4 24 27 34 39 43
3/4" (F)
VSM-*-190 .091" 26 32 37 46 53 59
Jet Agitators
6290-SC

Made in choice of brass, aluminum and all stainless steel. 1/4" NPT
(F) inlet connection. Fits through 2" (51 mm) hole. Weight 6 oz.
(0.17 kg). Siphon caps increase liquid flow by Venturi action to
increase mixing potential. Installed at bottom of spray tank on end
of agitator return line. Continuous solid stream jet flow creates
turbulence and keeps wettable powders in suspension.

JET ORIFICE ORIFICE CAPACITY (GPM) THRU AGITATOR LINE AT VARIOUS FOR MAX
AGITATOR CAP CAP INLET PRESSURES TANK SIZE IN
NUMBER NUMBER DIAMETER 10 PSI 15 PSI 20 PSI 30 PSI 40 PSI 50 PSI GALLONS OF How to Order:
6290SC-1 11118-1 .055" .78 .96 1.1 1.4 1.6 1.8 50 Specify jet agitator number.
6290SC-2 11118-2 .086" 1.9 2.3 2.7 3.3 3.8 4.3 110 Examples:
6290SC-3 11118-3 .096" 2.4 2.9 3.3 4.1 4.7 5.3 140 6290SC-1 – Brass
6290SC-1-AL – Aluminum
6290SC-5 11118-5 .144" 4.4 5.4 6.2 7.6 8.8 9.9 250
6290SC-1-SS – Stainless Steel
6290SC-8 11118-8 .156" 5.1 6.3 7.2 8.8 10.2 11.4 300
6290SC-10 11118-10 .177" 5.7 7.0 8.0 9.7 11.4 12.7 350 Other sizes available.
