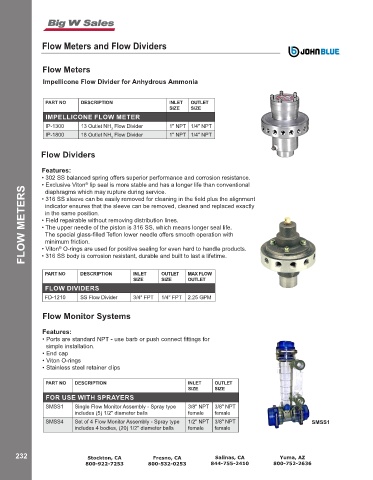

Page 234 - 2022 Online Catalog

Flow Meters and Flow Dividers

Flow Meters

Impellicone Flow Divider for Anhydrous Ammonia

PART NO DESCRIPTION INLET OUTLET
SIZE SIZE
IMPELLICONE FLOW METER
IP-1300 13 Outlet NH Flow Divider 1" NPT 1/4" NPT
3
IP-1800 18 Outlet NH Flow Divider 1" NPT 1/4" NPT
3
Flow Dividers

Features:
• 302 SS balanced spring offers superior performance and corrosion resistance.
• Exclusive Viton lip seal is more stable and has a longer life than conventional
®
FLOW METERS indicator ensures that the sleeve can be removed, cleaned and replaced exactly
diaphragms which may rupture during service.
• 316 SS sleeve can be easily removed for cleaning in the field plus the alignment
in the same position.
• Field repairable without removing distribution lines.
• The upper needle of the piston is 316 SS, which means longer seal life.
The special glass-filled Teflon lower needle offers smooth operation with
minimum friction.
• Viton O-rings are used for positive sealing for even hard to handle products.
®
• 316 SS body is corrosion resistant, durable and built to last a lifetime.

PART NO DESCRIPTION INLET OUTLET MAX FLOW
SIZE SIZE OUTLET
FLOW DIVIDERS
FD-1210 SS Flow Divider 3/4" FPT 1/4" FPT 2.25 GPM

Flow Monitor Systems

Features:
• Ports are standard NPT - use barb or push connect fittings for
simple installation.
• End cap
• Viton O-rings
• Stainless steel retainer clips

PART NO DESCRIPTION INLET OUTLET
SIZE SIZE
FOR USE WITH SPRAYERS
SMSS1 Single Flow Monitor Assembly - Spray type 3/8" NPT 3/8" NPT
includes (5) 1/2" diameter balls female female
SMSS4 Set of 4 Flow Monitor Assembly - Spray type 1/2" NPT 3/8" NPT SMSS1
includes 4 bodies, (20) 1/2" diameter balls female female
