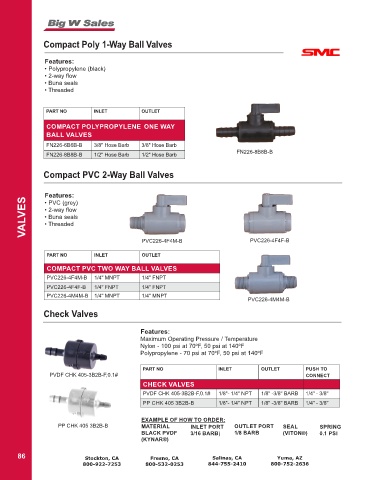

Page 88 - 2022 Online Catalog

Compact Poly 1-Way Ball Valves

Features:
• Polypropylene (black)
• 2-way flow
• Buna seals
• Threaded

PART NO INLET OUTLET

COMPACT POLYPROPYLENE ONE WAY
BALL VALVES
FN226-6B6B-B 3/8" Hose Barb 3/8" Hose Barb
FN226-8B8B-B
FN226-8B8B-B 1/2" Hose Barb 1/2" Hose Barb

Compact PVC 2-Way Ball Valves

Features:
VALVES • 2-way flow
• PVC (grey)
• Buna seals
• Threaded

PVC226-4F4M-B PVC226-4F4F-B

PART NO INLET OUTLET

COMPACT PVC TWO WAY BALL VALVES
PVC226-4F4M-B 1/4" MNPT 1/4" FNPT
PVC226-4F4F-B 1/4" FNPT 1/4" FNPT
PVC226-4M4M-B 1/4" MNPT 1/4" MNPT
PVC226-4M4M-B
Check Valves

Features:
Maximum Operating Pressure / Temperature
Nylon - 100 psi at 70ºF, 50 psi at 140ºF
Polypropylene - 70 psi at 70ºF, 50 psi at 140ºF

PART NO INLET OUTLET PUSH TO
PVDF CHK 405-3B2B-F,0.1# CONNECT
CHECK VALVES
PVDF CHK 405-3B2B-F,0.1# 1/8"- 1/4" NPT 1/8" -3/8" BARB 1/4" - 3/8"
PP CHK 405 3B2B-B 1/8"- 1/4" NPT 1/8" -3/8" BARB 1/4" - 3/8"

EXAMPLE OF HOW TO ORDER:
PP CHK 405 3B2B-B MATERIAL INLET PORT OUTLET PORT SEAL SPRING
BLACK PVDF 3/16 BARB) 1/8 BARB (VITON®) 0.1 PSI
(KYNAR®)
