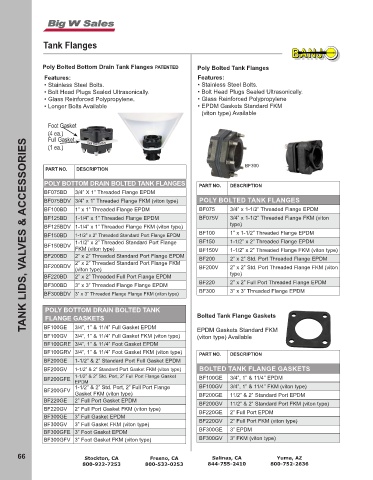

Page 68 - 2022 Online Catalog

Tank Flanges

Poly Bolted Bottom Drain Tank Flanges PATENTED Poly Bolted Tank Flanges
Features: Features:
• Stainless Steel Bolts. • Stainless Steel Bolts.
• Bolt Head Plugs Sealed Ultrasonically. • Bolt Head Plugs Sealed Ultrasonically.
• Glass Reinforced Polypropylene. • Glass Reinforced Polypropylene
• Longer Bolts Available • EPDM Gaskets Standard FKM
(viton type) Available

Foot Gasket
(4 ea.)
Full Gasket Tank Wall Bottom
TANK LIDS, VALVES & ACCESSORIES
(1 ea.)

BF300
PART NO. DESCRIPTION

POLY BOTTOM DRAIN BOLTED TANK FLANGES PART NO. DESCRIPTION
BF075BD 3/4” X 1” Threaded Flange EPDM
BF075BDV 3/4” x 1” Threaded Flange FKM (viton type) POLY BOLTED TANK FLANGES
BF100BD 1” x 1” Threaded Flange EPDM BF075 3/4” x 1-1/2” Threaded Flange EPDM
BF125BD 1-1/4” x 1” Threaded Flange EPDM BF075V 3/4” x 1-1/2” Threaded Flange FKM (viton
BF125BDV 1-1/4” x 1” Threaded Flange FKM (viton type) type)
BF150BD 1-1/2” x 2” Threaded Standard Port Flange EPDM BF100 1” x 1-1/2” Threaded Flange EPDM
1-1/2” x 2” Threaded Standard Port Flange BF150 1-1/2” x 2” Threaded Flange EPDM
BF150BDV
FKM (viton type) BF150V 1-1/2” x 2” Threaded Flange FKM (viton type)
BF200BD 2” x 2” Threaded Standard Port Flange EPDM BF200 2” x 2” Std. Port Threaded Flange EPDM
2” x 2” Threaded Standard Port Flange FKM
BF200BDV BF200V 2” x 2” Std. Port Threaded Flange FKM (viton
(viton type)
BF220BD 2” x 2” Threaded Full Port Flange EPDM type)
BF300BD 3” x 3” Threaded Flange Flange EPDM BF220 2” x 2” Full Port Threaded Flange EPDM
BF300 3” x 3” Threaded Flange EPDM
BF300BDV 3” x 3” Threaded Flange Flange FKM (viton type)
POLY BOTTOM DRAIN BOLTED TANK
FLANGE GASKETS Bolted Tank Flange Gaskets
BF100GE 3/4”, 1” & 11/4” Full Gasket EPDM EPDM Gaskets Standard FKM
BF100GV 3/4”, 1” & 11/4” Full Gasket FKM (viton type) (viton type) Available
BF100GRE 3/4”, 1” & 11/4” Foot Gasket EPDM
BF100GRV 3/4”, 1” & 11/4” Foot Gasket FKM (viton type) PART NO. DESCRIPTION
BF200GE 1-1/2” & 2” Standard Port Full Gasket EPDM
BF200GV 1-1/2” & 2” Standard Port Gasket FKM (viton type) BOLTED TANK FLANGE GASKETS
BF200GFE 1-1/2” & 2” Std. Port, 2” Full Port Flange Gasket BF100GE 3/4”, 1” & 11/4” EPDM
EPDM
BF200GFV 1-1/2” & 2” Std. Port, 2” Full Port Flange BF100GV 3/4”, 1” & 11/4” FKM (viton type)
Gasket FKM (viton type) BF200GE 11/2” & 2” Standard Port EPDM
BF220GE 2” Full Port Gasket EPDM BF200GV 11/2” & 2” Standard Port FKM (viton type)
BF220GV 2” Full Port Gasket FKM (viton type) BF220GE 2” Full Port EPDM
BF300GE 3” Full Gasket EPDM
BF300GV 3” Full Gasket FKM (viton type) BF220GV 2” Full Port FKM (viton type)
BF300GFE 3” Foot Gasket EPDM BF300GE 3” EPDM
BF300GFV 3” Foot Gasket FKM (viton type) BF300GV 3” FKM (viton type)
