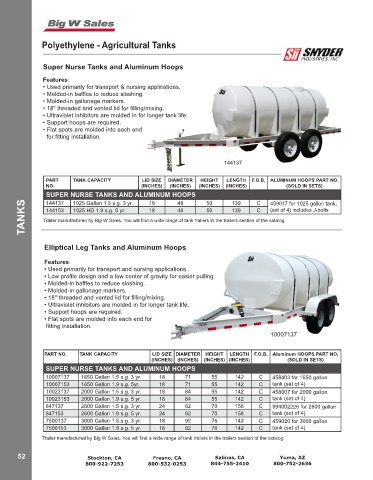

Page 54 - 2022 Online Catalog
P. 54

Polyethylene - Agricultural Tanks



                Super Nurse Tanks and Aluminum Hoops

                Features:
                • Used primarily for transport & nursing applications.
                • Molded-in baffles to reduce sloshing.
                • Molded-in gallonage markers.
                • 18" threaded and vented lid for filling/mixing.
                • Ultraviolet inhibitors are molded in for longer tank life.
                • Support hoops are required.
                • Flat spots are molded into each end
                  for fitting installation.




                                                                             144137

                 PART     TANK CAPACITY          LID SIZE  DIAMETER  HEIGHT   LENGTH  F.O.B.  ALUMINUM HOOPS PART NO.
                 NO.                             (INCHES)  (INCHES)  (INCHES)  (INCHES)           (SOLD IN SETS)
                 SUPER NURSE TANKS AND ALUMINUM HOOPS                  50      139      C   459017 for 1025 gallon tank,
                 144137
         TANKS  Trailer manufactured by Big W Sales. You will find a wide range of tank trailers in the trailers section of the catalog.
                                                             48
                                                   18
                          1025 Gallon 1.5 s.g. 3 yr.
                                                                                            (set of 4) includes J-bolts
                                                                                        C
                 144153
                                                   18
                                                             48
                          1025 HD 1.9 s.g. 5 yr.
                                                                               139
                                                                       50
                Elliptical Leg Tanks and Aluminum Hoops
                Features:
                • Used primarily for transport and nursing applications
                • Low profile design and a low center of gravity for easier pulling.
                • Molded-in baffles to reduce sloshing.
                • Molded-in gallonage markers.
                • 18" threaded and vented lid for filling/mixing.
                • Ultraviolet inhibitors are molded in for longer tank life.
                • Support hoops are required.
                • Flat spots are molded into each end for
                 fitting installation.
                                                                                            10007137


                PART NO.    TANK CAPACITY           LID SIZE DIAMETER  HEIGHT  LENGTH  F.O.B.  Aluminum HOOPS PART NO.
                                                    (INCHES)  (INCHES)  (INCHES) (INCHES)         (SOLD IN SETS)
                 SUPER NURSE TANKS AND ALUMINUM HOOPS
                 10007137   1650 Gallon 1.5 s.g. 3 yr.  18      71      55      142      C   458403 for 1650 gallon
                 10007153   1650 Gallon 1.9 s.g. 5yr.   18      71      55      142      C   tank (set of 4)
                 10023137   2000 Gallon 1.5 s.g. 3 yr.  18      84      55      142      C   458007 for 2000 gallon
                 10023153   2000 Gallon 1.9 s.g. 5 yr.  18      84      55      142      C   tank (set of 4)
                 847137     2600 Gallon 1.5 s.g. 3 yr.  24      82      70      158      C   994002226 for 2600 gallon
                 847153     2600 Gallon 1.9 s.g. 5 yr.  24      82      70      158      C   tank (set of 4)
                 7500137    3000 Gallon 1.5 s.g. 3 yr.  18      92      76      142      C   459020 for 3000 gallon
                 7500153    3000 Gallon 1.9 s.g. 5 yr.  18      92      76      142      C   tank (set of 4)
               Trailer manufactured by Big W Sales. You will find a wide range of tank trailers in the trailers section of the catalog.
