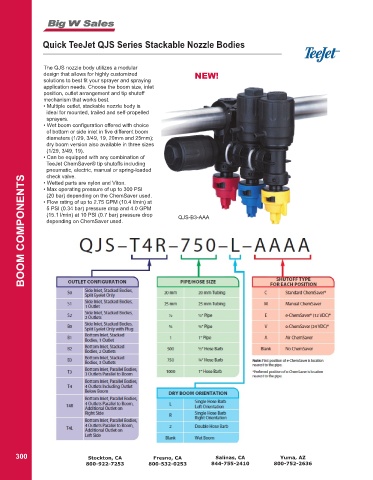

Page 302 - 2022 Online Catalog

Quick TeeJet QJS Series Stackable Nozzle Bodies

The QJS nozzle body utilizes a modular
design that allows for highly customized NEW!
solutions to best fit your sprayer and spraying
application needs. Choose the boom size, inlet
position, outlet arrangement and tip shutoff
mechanism that works best.
• Multiple outlet, stackable nozzle body is
ideal for mounted, trailed and self-propelled
sprayers.
• Wet boom configuration offered with choice
of bottom or side inlet in five different boom
diameters (1/29, 3/49, 19, 20mm and 25mm);
dry boom version also available in three sizes
(1/29, 3/49, 19).
• Can be equipped with any combination of
TeeJet ChemSaver® tip shutoffs including
pneumatic, electric, manual or spring-loaded
check valve.
BOOM COMPONENTS
• Wetted parts are nylon and Viton.
• Max operating pressure of up to 300 PSI
(20 bar) depending on the ChemSaver used.
• Flow rating of up to 2.75 GPM (10.4 l/min) at
5 PSI (0.34 bar) pressure drop and 4.0 GPM
(15.1 l/min) at 10 PSI (0.7 bar) pressure drop QJS-B3-AAA
depending on ChemSaver used.
