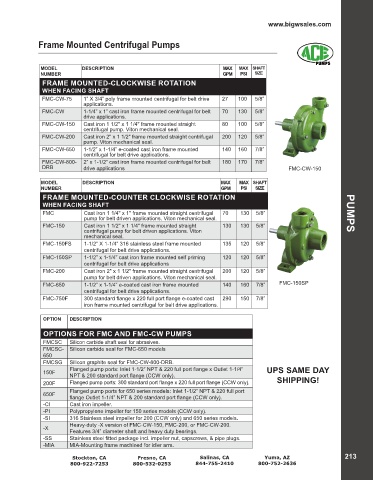

Page 215 - 2022 Online Catalog

www.bigwsales.com

Frame Mounted Centrifugal Pumps

MODEL DESCRIPTION MAX MAX SHAFT
NUMBER GPM PSI SIZE
FRAME MOUNTED-CLOCKWISE ROTATION
WHEN FACING SHAFT
FMC-CW-75 1” X 3/4” poly frame mounted centrifugal for belt drive 27 100 5/8”
applications.
FMC-CW 1-1/4” x 1” cast iron frame mounted centrifugal for belt 70 130 5/8”
drive applications.
FMC-CW-150 Cast iron 1 1/2" x 1 1/4" frame mounted straight 80 100 5/8”
centrifugal pump. Viton mechanical seal.
FMC-CW-200 Cast iron 2" x 1 1/2" frame mounted straight centrifugal 200 120 5/8”
pump. Viton mechanical seal.
FMC-CW-650 1-1/2” x 1-1/4” e-coated cast iron frame mounted 140 160 7/8”
centrifugal for belt drive applications.
FMC-CW-800- 2” x 1-1/2” cast iron frame mounted centrifugal for belt 180 170 7/8”
DRB drive applications FMC-CW-150

MODEL DESCRIPTION MAX MAX SHAFT
NUMBER GPM PSI SIZE
FRAME MOUNTED-COUNTER CLOCKWISE ROTATION
WHEN FACING SHAFT
FMC Cast iron 1 1/4" x 1" frame mounted straight centrifugal 70 130 5/8” PUMPS
pump for belt driven applications. Viton mechanical seal.
FMC-150 Cast iron 1 1/2" x 1 1/4" frame mounted straight 130 130 5/8”
centrifugal pump for belt driven applications. Viton
mechanical seal.
FMC-150FS 1-1/2” X 1-1/4” 316 stainless steel frame mounted 135 120 5/8”
centrifugal for belt drive applications.
FMC-150SP 1-1/2” x 1-1/4” cast iron frame mounted self priming 120 120 5/8”
centrifugal for belt drive applications
FMC-200 Cast iron 2" x 1 1/2" frame mounted straight centrifugal 200 120 5/8”
pump for belt driven applications. Viton mechanical seal.
FMC-650 1-1/2” x 1-1/4” e-coated cast iron frame mounted 140 160 7/8” FMC-150SP
centrifugal for belt drive applications.
FMC-750F 300 standard flange x 220 full port flange e-coated cast 290 150 7/8”
iron frame mounted centrifugal for belt drive applications.

OPTION DESCRIPTION
OPTIONS FOR FMC AND FMC-CW PUMPS
FMCSC Silicon carbide shaft seal for abrasives.
FMCSC- Silicon carbide seal for FMC-650 models
650
FMCSG Silicon graphite seal for FMC-CW-800-DRB.
Flanged pump ports: Inlet 1-1/2” NPT & 220 full port flange x Outlet 1-1/4” UPS SAME DAY
150F
NPT & 200 standard port flange (CCW only).
200F Flanged pump ports: 300 standard port flange x 220 full port flange (CCW only). SHIPPING!
Flanged pump ports for 650 series models: Inlet 1-1/2” NPT & 220 full port
650F
flange Outlet 1-1/4” NPT & 200 standard port flange (CCW only).
-CI Cast iron impeller.
-PI Polypropylene impeller for 150 series models (CCW only).
-SI 316 Stainless steel impeller for 200 (CCW only) and 650 series models.
Heavy-duty -X version of FMC-CW-150, FMC-200, or FMC-CW-200.
-X
Features 3/4” diameter shaft and heavy duty bearings.
-SS Stainless steel fitted package incl. impeller nut, capscrews, & pipe plugs.
-MIA MIA-Mounting frame machined for idler arm.
