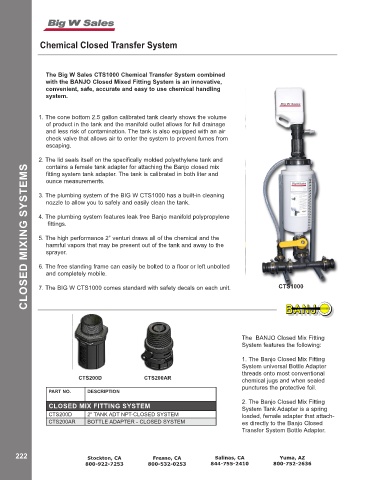

Chemical Closed Transfer System
The Big W Sales CTS1000 Chemical Transfer System combined
with the BANJO Closed Mixed Fitting System is an innovative,
convenient, safe, accurate and easy to use chemical handling
system.
1. The cone bottom 2.5 gallon calibrated tank clearly shows the volume
of product in the tank and the manifold outlet allows for full drainage
and less risk of contamination. The tank is also equipped with an air
check valve that allows air to enter the system to prevent fumes from
escaping.
2. The lid seals itself on the specifically molded polyethylene tank and
contains a female tank adapter for attaching the Banjo closed mix
CLOSED MIXING SYSTEMS
fitting system tank adapter. The tank is calibrated in both liter and
ounce measurements.
3. The plumbing system of the BIG W CTS1000 has a built-in cleaning
nozzle to allow you to safely and easily clean the tank.
4. The plumbing system features leak free Banjo manifold polypropylene
fittings.
5. The high performance 2” venturi draws all of the chemical and the
harmful vapors that may be present out of the tank and away to the
sprayer.
6. The free standing frame can easily be bolted to a floor or left unbolted
and completely mobile.
7. The BIG W CTS1000 comes standard with safety decals on each unit. CTS1000
The BANJO Closed Mix Fitting
System features the following:
1. The Banjo Closed Mix Fitting
System universal Bottle Adapter
threads onto most conventional
CTS200D CTS200AR chemical jugs and when sealed
punctures the protective foil.
PART NO. DESCRIPTION
2. The Banjo Closed Mix Fitting
CLOSED MIX FITTING SYSTEM System Tank Adapter is a spring
CTS200D 2" TANK ADT NPT-CLOSED SYSTEM loaded, female adapter that attach-
CTS200AR BOTTLE ADAPTER - CLOSED SYSTEM es directly to the Banjo Closed
Transfer System Bottle Adapter.
