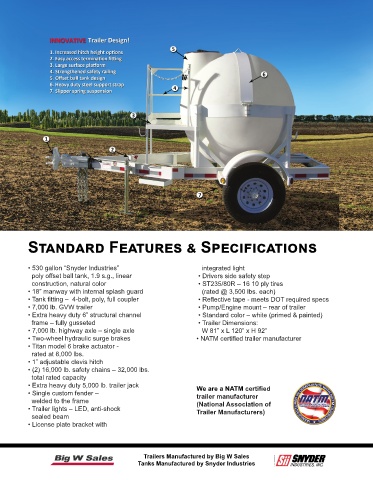

Page 17 - 2022 Online Catalog

Standard Features & Specifications

• 530 gallon “Snyder Industries” integrated light
poly offset ball tank, 1.9 s.g., linear • Drivers side safety step
construction, natural color • ST235/80R – 16 10 ply tires
• 18” manway with internal splash guard (rated @ 3,500 lbs. each)
• Tank fitting – 4-bolt, poly, full coupler • Reflective tape - meets DOT required specs
• 7,000 lb. GVW trailer • Pump/Engine mount – rear of trailer
• Extra heavy duty 6” structural channel • Standard color – white (primed & painted)
frame – fully gusseted • Trailer Dimensions:
• 7,000 lb. highway axle – single axle W 81” x L 120” x H 92”
• Two-wheel hydraulic surge brakes • NATM certified trailer manufacturer
• Titan model 6 brake actuator -
rated at 8,000 lbs.
• 1” adjustable clevis hitch
• (2) 16,000 lb. safety chains – 32,000 lbs.
total rated capacity
• Extra heavy duty 5,000 lb. trailer jack We are a NATM certified
• Single custom fender – trailer manufacturer
welded to the frame (National Association of
• Trailer lights – LED, anti-shock Trailer Manufacturers)
sealed beam
• License plate bracket with

Big Sales Trailers Manufactured by Big W Sales
W
Tanks Manufactured by Snyder Industries
