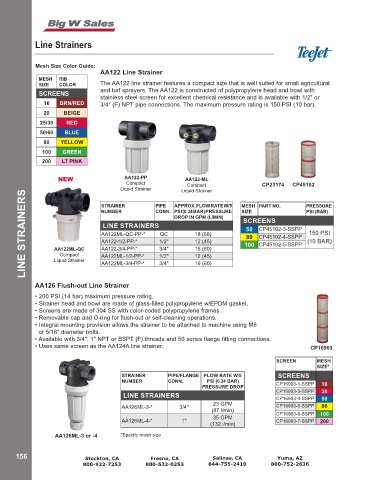

Page 158 - 2022 Online Catalog

Line Strainers

Mesh Size Color Guide:
AA122 Line Strainer
MESH RIB
SIZE COLOR The AA122 line strainer features a compact size that is well suited for small agricultural
SCREENS and turf sprayers. The AA122 is constructed of polypropylene head and bowl with
stainless steel screen for excellent chemical resistance and is available with 1/2" or
16 BRN/RED 3/4" (F) NPT pipe connections. The maximum pressure rating is 150 PSI (10 bar).
20 BEIGE
25/30 RED
50/60 BLUE
80 YELLOW
100 GREEN
200 LT PINK

NEW AA122-PP AA122-ML
Compact Compact CP23174 CP45102
Liquid Strainer PIPE APPROX. FLOW RATE W/5 MESH PART NO. PRESSURE
Liquid Strainer
LINE STRAINERS AA122ML-QC AA122ML-QC-PP-* 1/2" DROP IN GPM (L/MIN) SCREENS (10 BAR)
STRAINER
NUMBER
SIZE
CONN. PSI (0.34 BAR) PRESSURE
PSI (BAR)
LINE STRAINERS
CP45102-3-SSPP
50
150 PSI
QC
18 (68)
CP45102-4-SSPP
80
12 (45)
AA122-1/2-PP-*
100 CP45102-5-SSPP
3/4"
AA122-3/4-PP-*
16 (60)
Compact
12 (45)
1/2"
AA122ML-1/2-PP-*
Liquid Strainer
AA122ML-3/4-PP-*
AA126 Flush-out Line Strainer 3/4" 16 (60)
• 200 PSI (14 bar) maximum pressure rating.
• Strainer head and bowl are made of glass-filled polypropylene w/EPDM gasket.
• Screens are made of 304 SS with color-coded polypropylene frames.
• Removable cap and O-ring for flush-out or self-cleaning operations.
• Integral mounting provision allows the strainer to be attached to machine using M8
or 5/16" diameter bolts.
• Available with 3/4", 1" NPT or BSPT (F) threads and 50 series flange fitting connections.
• Uses same screen as the AA124A line strainer. CP16903
SCREEN MESH
SIZE*
STRAINER PIPE/FLANGE FLOW RATE W/5 SCREENS
NUMBER CONN. PSI (0.34 BAR) CP16903-1-SSPP 16
PRESSURE DROP
LINE STRAINERS CP16903-3-SSPP 30
50
CP16903-4-SSPP
23 GPM
AA126ML-3-* 3/4" CP16903-5-SSPP 80
(87 l/min)
35 GPM CP16903-6-SSPP 100
AA126ML-4-* 1" CP16903-7-SSPP 200
(132 l/min)
AA126ML-3 or -4 *Specify mesh size
