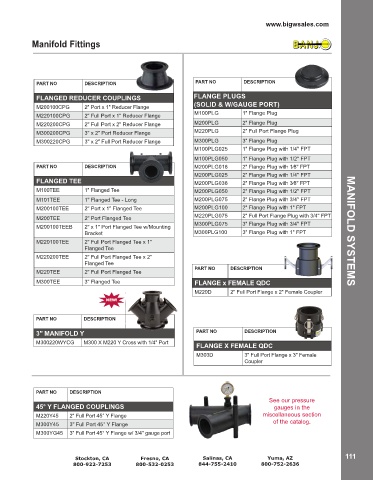

Page 113 - 2022 Online Catalog

www.bigwsales.com

Manifold Fittings

PART NO DESCRIPTION PART NO DESCRIPTION

FLANGED REDUCER COUPLINGS FLANGE PLUGS
M200100CPG 2" Port x 1" Reducer Flange (SOLID & W/GAUGE PORT)
M220100CPG 2" Full Port x 1" Reducer Flange M100PLG 1" Flange Plug
M220200CPG 2" Full Port x 2" Reducer Flange M200PLG 2" Flange Plug
M300200CPG 3" x 2" Port Reducer Flange M220PLG 2" Full Port Flange Plug
M300220CPG 3" x 2" Full Port Reducer Flange M300PLG 3" Flange Plug
M100PLG025 1" Flange Plug with 1/4" FPT
M100PLG050 1" Flange Plug with 1/2" FPT
PART NO DESCRIPTION M200PLG018 2" Flange Plug with 1⁄8" FPT
M200PLG025 2" Flange Plug with 1/4" FPT
FLANGED TEE M200PLG038 2" Flange Plug with 3⁄8" FPT
M100TEE 1" Flanged Tee M200PLG050 2" Flange Plug with 1/2" FPT
M101TEE 1" Flanged Tee - Long M200PLG075 2" Flange Plug with 3/4" FPT
M200100TEE 2" Port x 1" Flanged Tee M200PLG100 2" Flange Plug with 1" FPT
M200TEE 2" Port Flanged Tee M220PLG075 2" Full Port Flange Plug with 3/4" FPT
M200100TEEB 2" x 1" Port Flanged Tee w/Mounting M300PLG075 3" Flange Plug with 3/4" FPT
Bracket M300PLG100 3" Flange Plug with 1" FPT MANIFOLD SYSTEMS
M220100TEE 2" Full Port Flanged Tee x 1"
Flanged Tee
M220200TEE 2" Full Port Flanged Tee x 2"
Flanged Tee
PART NO DESCRIPTION
M220TEE 2" Full Port Flanged Tee
M300TEE 3" Flanged Tee FLANGE x FEMALE QDC
M220D 2" Full Port Flange x 2" Female Coupler
NEW!

PART NO DESCRIPTION

3" MANIFOLD Y PART NO DESCRIPTION

M300220WYCG M300 X M220 Y Cross with 1/4" Port
FLANGE X FEMALE QDC
M303D 3" Full Port Flange x 3" Female
Coupler

PART NO DESCRIPTION
See our pressure
45° Y FLANGED COUPLINGS gauges in the
M220Y45 2" Full Port 45° Y Flange miscellaneous section
M300Y45 3" Full Port 45° Y Flange of the catalog.
M300YG45 3" Full Port 45° Y Flange w/ 3/4" gauge port
